40mm Face Milling Shell WNT Ahfc.40.r.04-09

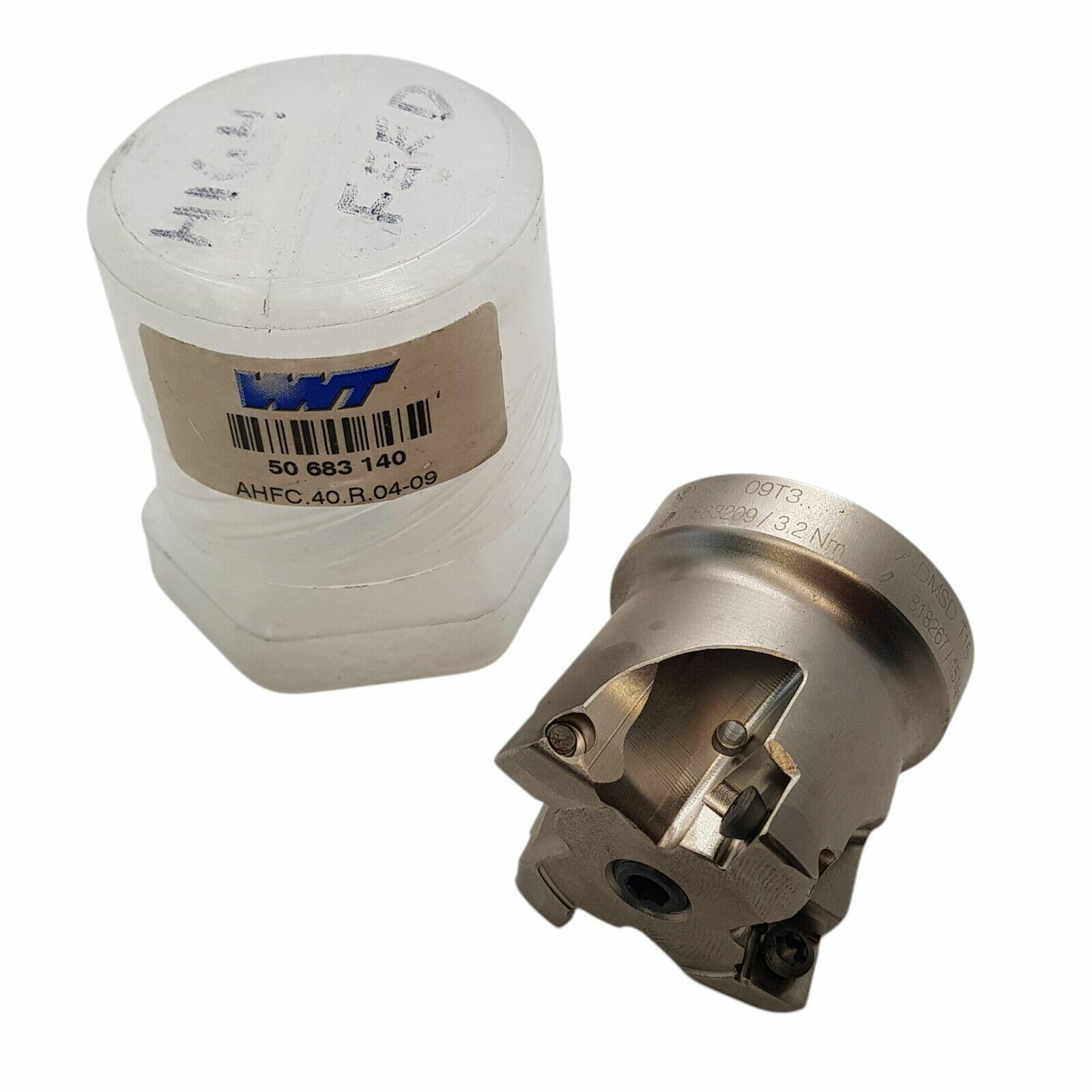

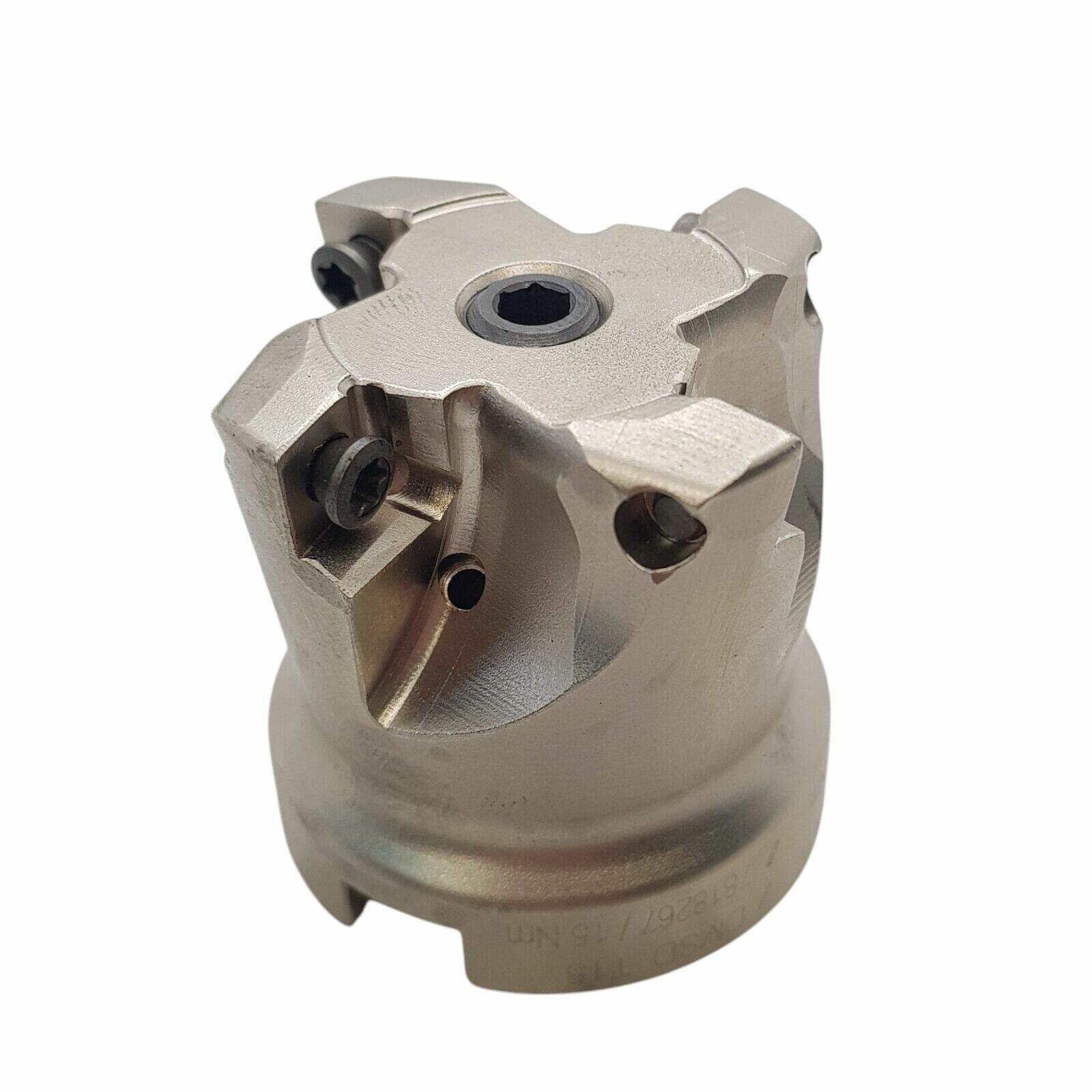

WNT AHFC.40.R.04-09 MaxiMill Shell Face Milling Cutter
- Product: WNT AHFC.40.R.04-09 MaxiMill Shell Face Milling Cutter
- Cutting Diameter (DC): 40 mm
- Tool Cutting Edge Angle (KAPR): 27.3°
- Maximum Depth of Cut (APMX): 3.6 mm
- Number of Inserts (ZNF): 4
- Overall Length (OAL): 40 mm
- Hub Diameter (DHUB): 38 mm
- Mounting Spigot Diameter (DCONMS H6): 16 mm
- Maximum Rotational Speed (RPMX): 26,400 RPM
- Compatible Insert: XDLX 09T3..
- Torque Moment for Clamping: 3.2 Nm
- Application: High-feed face milling operations
The WNT AHFC.40.R.04-09 MaxiMill Shell Face Milling Cutter is engineered for high-feed face milling applications. With a 40 mm cutting diameter and a 27.3° cutting edge angle, it allows for efficient material removal. The cutter accommodates four inserts and supports a maximum depth of cut up to 3.6 mm, making it suitable for various machining tasks.
